ENPOOL & STREET
MS-LD001

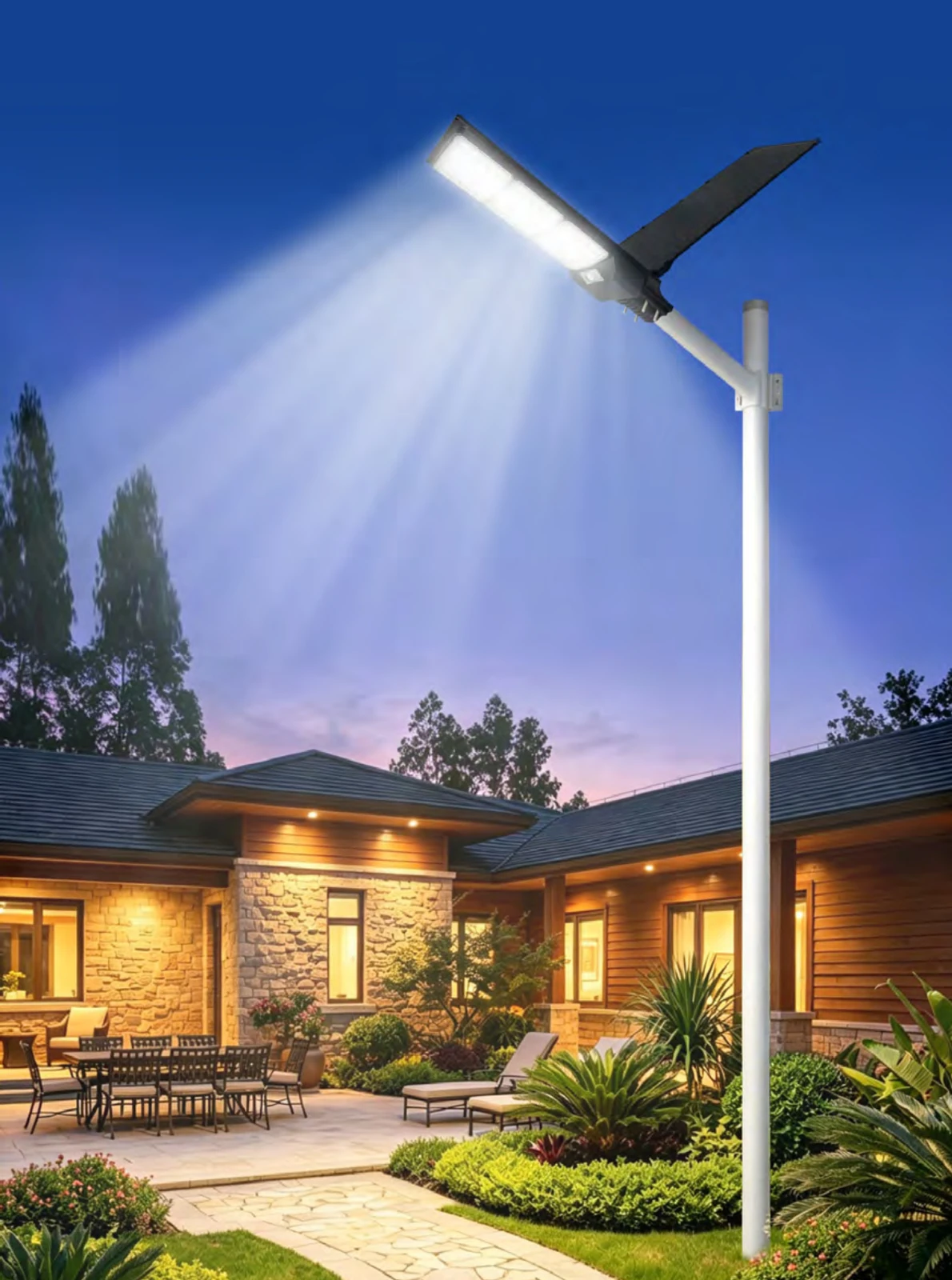

The TCLARO MS-LD001 combines an integrated streetlight format with a foldable solar panel and three-sided lighting. PIR sensing, light control, a switch, remote control and a timer are described in the catalogue. Several panel, battery and LED configurations are shown below.
APPLICATION & SELECTION
Choose the complete configuration by comparing the lamp size, solar panel arrangement and battery capacity. Confirm the mounting requirements and sensing setup with TCLARO for the intended site, and use the corresponding table row when requesting a quotation.
Read our lighting selection guideOptions for solar panel specification: 6V 12W+12W; 230×293mm / 230×293mm | 6V 17W+17W; 230×432mm / 230×432mm | 6V 25W+17W; 230×573mm / 230×432mm. Options for battery specification: 3.2V / 15000mAh | 3.2V / 25000mAh | 3.2V / 30000mAh.
Options for product dimensions: 540×235×72mm | 680×235×72mm.
Options for LED configuration: 2835 / 140 pcs | 2835 / 280 pcs | 2835 / 420 pcs.
PRODUCT INFORMATION
Exclusive patented mold. Foldable solar panel. PIR sensing: 15m width, 8m height. Light sensor + switch + remote control + timer. Three-sided lighting. IP65.
| Product size | Solar panel | Battery | LEDs |
|---|---|---|---|
| 540×235×72mm | 6V 12W+12W 230×293mm / 230×293mm | 3.2V / 15000mAh | 2835 / 140 pcs |
| 540×235×72mm | 6V 17W+17W 230×432mm / 230×432mm | 3.2V / 25000mAh | 2835 / 280 pcs |
| 680×235×72mm | 6V 25W+17W 230×573mm / 230×432mm | 3.2V / 30000mAh | 2835 / 420 pcs |
