Power & charging
Solar panel specification: 5.5V / 0.65W. Battery specification: 1200mAh / 3.7V. The catalogue lists a charging time of 6-8 hours in bright sunlight.
WALL & FLOOD

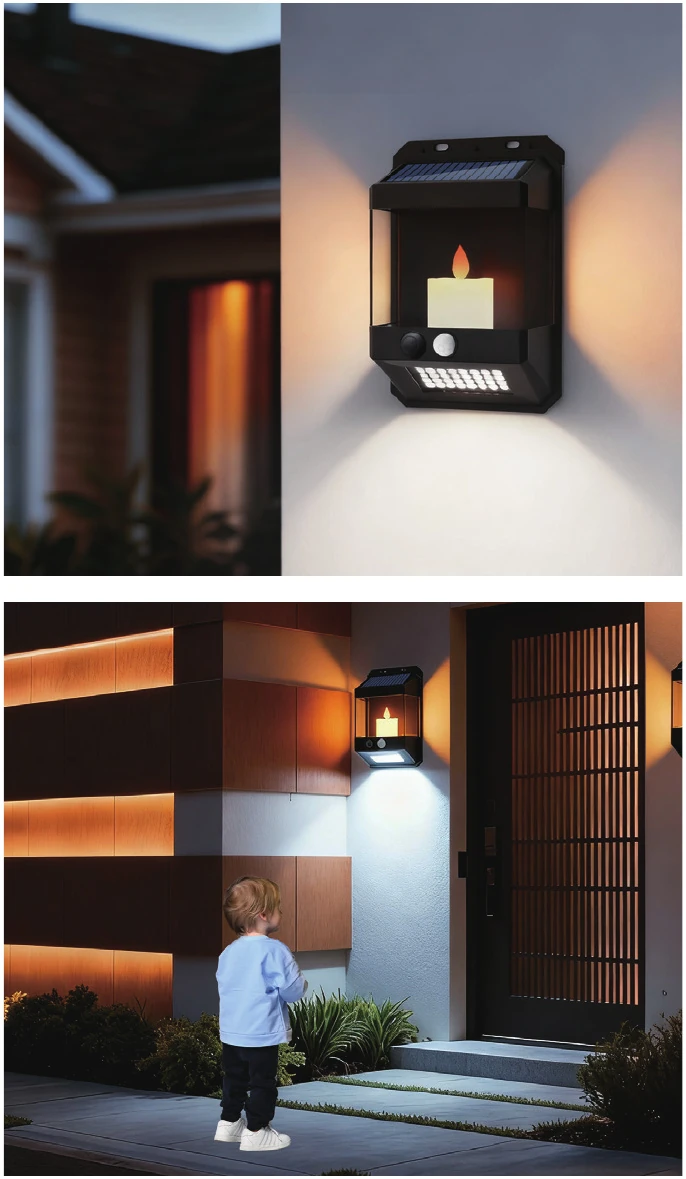

Solar Wall Light
MS-1822
The MS-1822 is a solar wall light with both motion and light sensing. The catalogue describes lighting when people arrive, switching off when they leave, and night-time operation rather than daytime lighting. Its ABS body and operating-temperature entry are specified below.
APPLICATION & SELECTION
A closer look at MS-1822.
Consider the intended approach direction and the daylight available at the mounting position. Check the model's dimension and operating-temperature entries against the installation brief, and request the sensor setup instructions when assessing a sample.
Read our lighting selection guideDimensions & construction
Product dimensions: 108×165×63mm. Body materials: ABS. IP rating: IP44.
Light & controls
Light source: 40 pcs. Catalogue luminous flux: ≥60 lm.
PRODUCT INFORMATION
Technical specifications.
Motion and light sensing. On when people arrive, off when they leave. On at night and off during the day.
- LEDs / light source
- 40 pcs
- Battery
- 1200mAh / 3.7V
- Solar panel
- 5.5V / 0.65W
- IP rating
- IP44
- Working time
- >8 hours
- Product size
- 108×165×63mm
- Material
- ABS
- Charging time
- 6-8 hours in bright sunlight
- Warranty
- 1 year
- Operating temperature
- -25 °C to 65 °C
- Luminous flux
- ≥60 lm
