Power & charging
Solar panel specification: 5.5V / 0.33W. Battery specification: 1200mAh / 3.7V. The catalogue lists a charging time of 6-8 hours in bright sunlight.
WALL & FLOOD

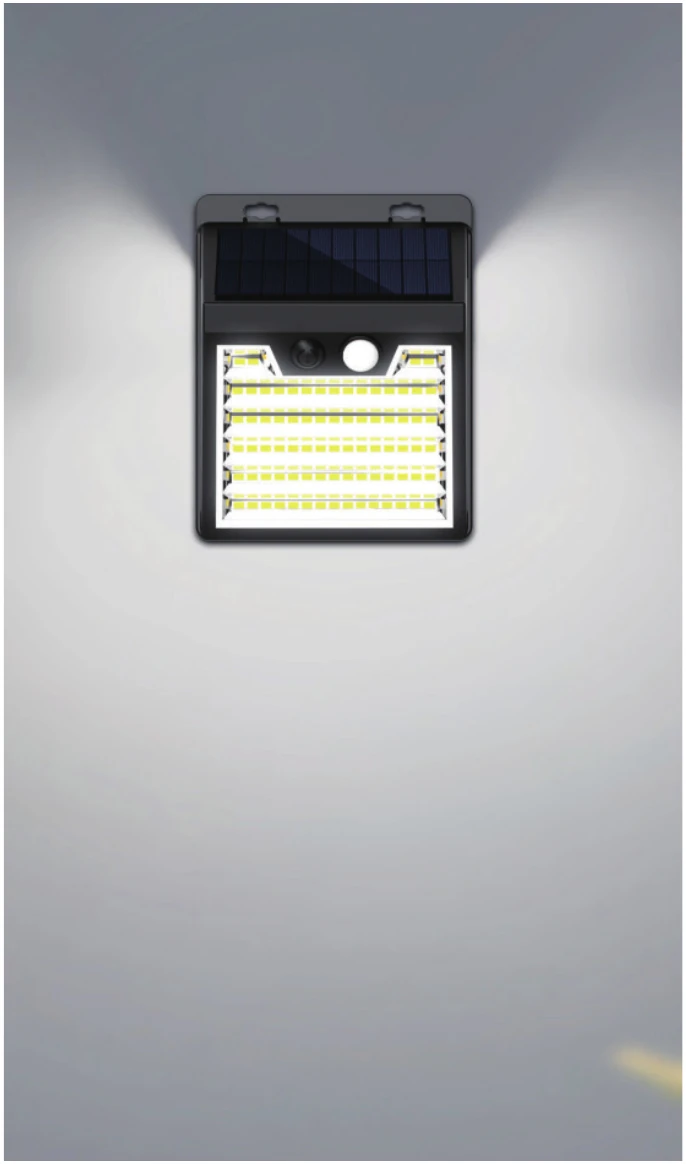

Solar Wall Light
MS-A18
The MS-A18 combines a compact solar wall-light body with a cool white LED source and three PIR operating modes. Its listed solar panel and battery support a detailed comparison with other sensor models, while the dimensions help establish the required mounting footprint.
APPLICATION & SELECTION
A closer look at MS-A18.
Compare the body's width, height and projection with the available wall surface. Select the sensing mode appropriate to the intended use and confirm the installation and switch instructions with TCLARO when evaluating a product sample.
Read our lighting selection guideDimensions & construction
Product dimensions: 96×120×51mm. Body materials: ABS+PC. IP rating: IP64.
Light & controls
Light source: 121 pcs. Color temperature: 6500K. Control: PIR sensor.
PRODUCT INFORMATION
Technical specifications.
3 PIR modes: medium light / dim-light sensing / bright-light sensing.
- LEDs / light source
- 121 pcs
- Battery
- 1200mAh / 3.7V
- Solar panel
- 5.5V / 0.33W
- IP rating
- IP64
- Working time
- >150 times
- Product size
- 96×120×51mm
- Material
- ABS+PC
- Charging time
- 6-8 hours in bright sunlight
- Warranty
- 1 year
- Control
- PIR sensor
- CCT
- 6500K
