Power & charging
Solar panel specification: 5.5V / 1.65W. Options for battery specification: 1200mAh / 3.2V | 2400mAh / 3.2V.
WALL & FLOOD

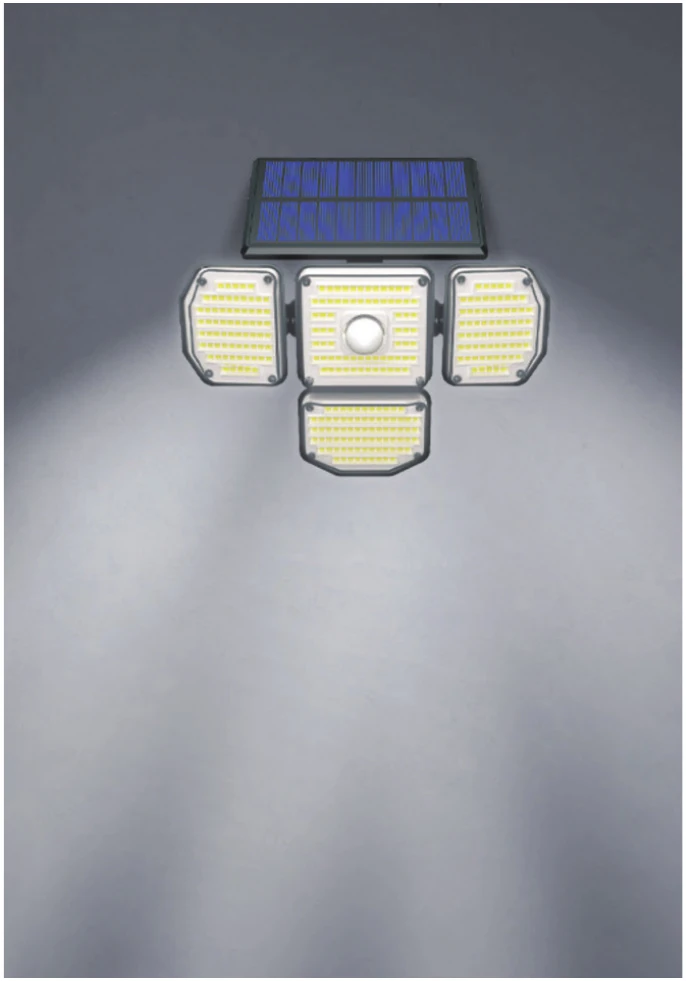

Solar Multi-head Wall Light
MS-AF003
The MS-AF003 is a solar multi-head wall-light family with three PIR operating modes. Several head configurations are available, with corresponding changes in LED count, battery capacity and overall dimensions. The table presents these combinations together for direct comparison.
APPLICATION & SELECTION
A closer look at MS-AF003.
Choose the head configuration before comparing the dimensions and battery specification. Discuss the intended mounting arrangement and sensing mode with TCLARO, and include both the model reference and head count when requesting a quotation or product sample.
Read our lighting selection guideDimensions & construction
The variant table lists the product dimensions for each version. Body materials: ABS+PC. IP rating: IP64.
Light & controls
The variant table lists the LED configuration for each version. Control: PIR sensor, 3 modes.
PRODUCT INFORMATION
Technical specifications.
3 PIR modes: medium light / dim-light sensing / bright-light sensing.
- IP rating
- IP64
- Material
- ABS+PC
- Control
- PIR sensor, 3 modes
| Configuration | Solar panel | LEDs | Battery | Product size |
|---|---|---|---|---|
| 3 heads | 5.5V / 1.65W | SMD2835, 122 pcs | 1200mAh / 3.2V | 217×185×85mm |
| 4 heads | 5.5V / 1.65W | SMD2835, 164 pcs | 1200mAh / 3.2V | 217×235×85mm |
| 5 heads | 5.5V / 1.65W | SMD2835, 214 pcs | 2400mAh / 3.2V | 340×185×85mm |
| 6 heads | 5.5V / 1.65W | SMD2835, 256 pcs | 2400mAh / 3.2V | 340×235×85mm |
