Power & charging
The variant table lists the solar panel specification for each version. The variant table lists the battery specification for each version.
WALL & FLOOD
Multi-panel Sensor Wall Lamp
MS-BD007
The TCLARO MS-BD007 is a solar sensor wall-lamp family covering several panel, lens and battery configurations. Separate catalogue series are shown on this page so buyers can compare the complete combinations rather than treating every version as one specification.
APPLICATION & SELECTION
A closer look at MS-BD007.
Choose a series first, then select the panel and lens configuration within it. Dimensions, solar panel ratings and battery capacities vary across the table. The wide-angle illumination and sensing-range notes belong to the series in which they are stated.
Read our lighting selection guideDimensions & construction
Options for product dimensions: 323×216×55mm | 323×289×55mm | 323×255×55mm.
Light & controls
The variant table lists the LED configuration for each version.
PRODUCT INFORMATION
Technical specifications.
Power values are the catalogue ratings for each configuration. Solar panel ratings are listed separately in the table.
Multi-panel Sensor Wall Lamp · Series 1

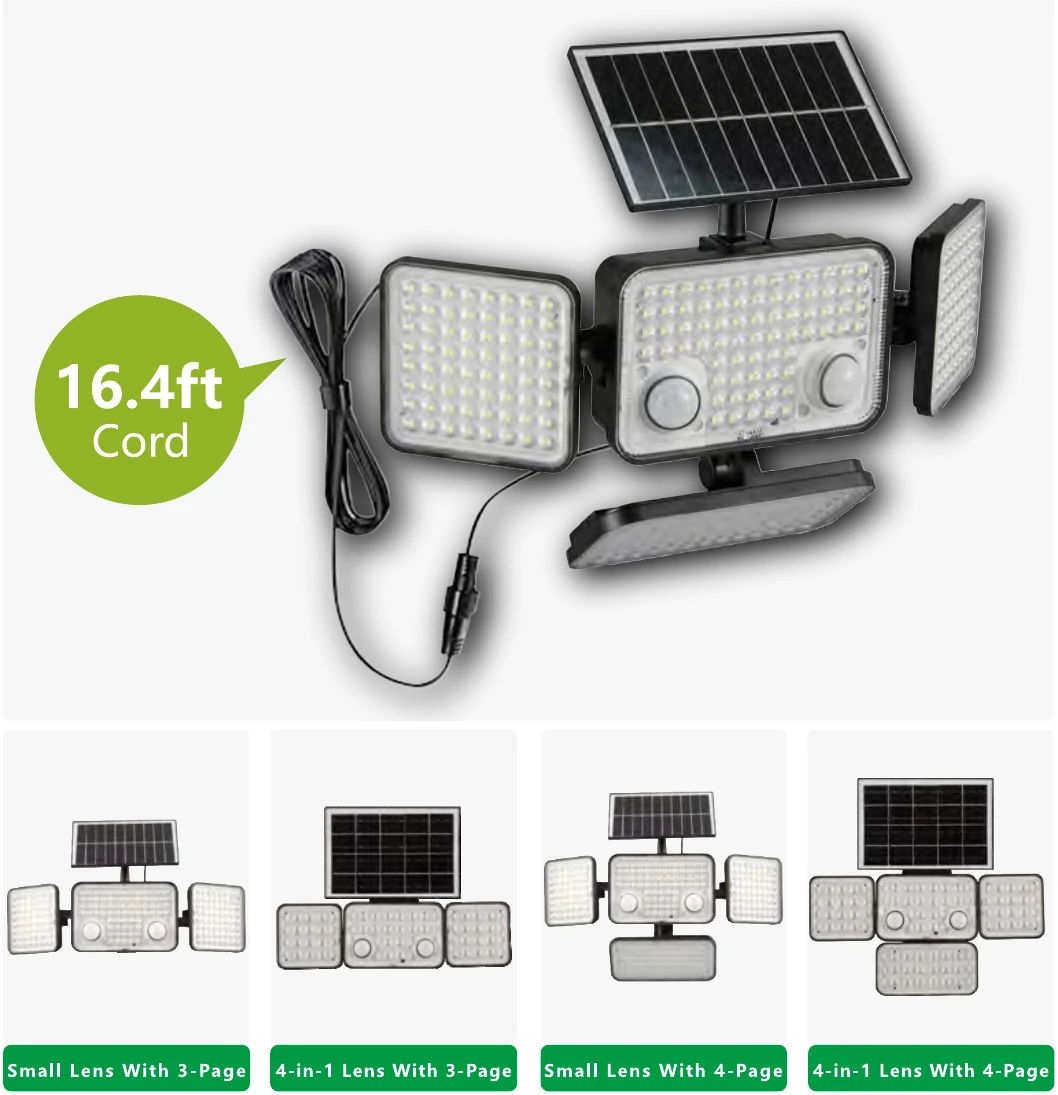

Series 1. 16.4ft cord.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| Small lens, 3 panels | 100W | 323×216×55mm | 5V / 1.8W 137×H84mm | 3.7V / 1800mAh | SMD2835 × 223 pcs |
| 4-in-1 lens, 3 panels | 100W | 323×289×55mm | 5V / 3.5W 173×H118mm | 3.7V / 2400mAh | SMD2835 × 236 pcs |
| Small lens, 4 panels | 120W | 323×255×55mm | 5V / 1.8W 137×H84mm | 3.7V / 2400mAh | SMD2835 × 320 pcs |
| 4-in-1 lens, 4 panels | 120W / 200W | 323×289×55mm | 5V / 3.5W 173×H118mm 6V / 6W 272×H138mm | 3.7V / 2400mAh 3.7V / 4000mAh | SMD2835 × 320 pcs |
Multi-panel Sensor Wall Lamp · Series 2

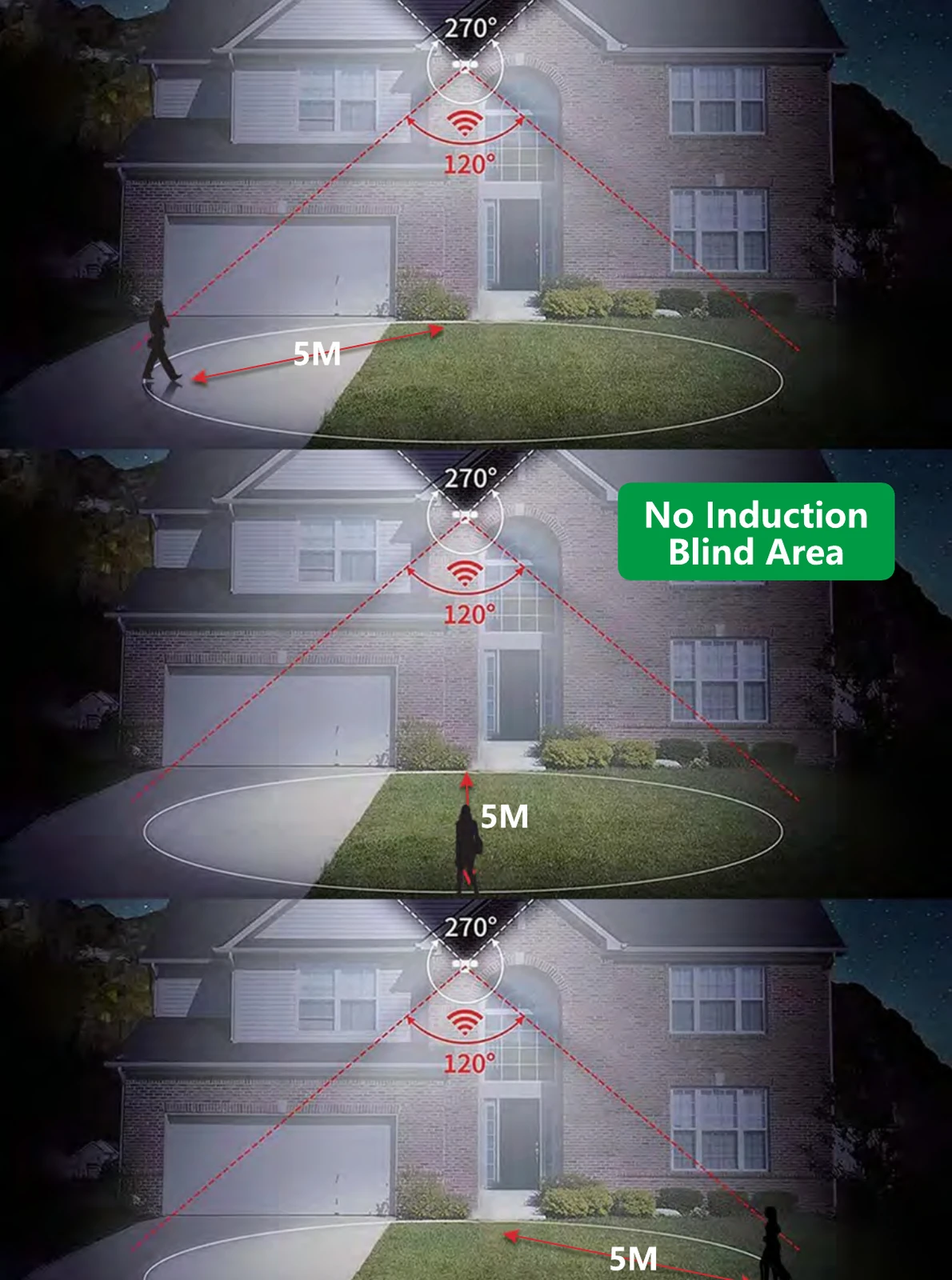

Series 2. 16.4ft cord. 270-degree illumination; 5m sensing range.
| Variant | Power | Product size | Solar panel | Battery | LEDs |
|---|---|---|---|---|---|
| Small lens, 4 panels | 120W | 323×255×55mm | 5V / 1.8W 137×H84mm | 3.7V / 2400mAh | SMD2835 × 278 pcs |
| 4-in-1 lens, 4 panels | 200W | 323×289×55mm | 6V / 6W 272×H138mm | 3.7V / 4000mAh | SMD2835 × 292 pcs |
